Step2:Product show and rack installation, fix the machine
2024/12/4 9:51:10

2. Product show and rack installation, fix the machine

   Install the foot according to the drawing or video, install the foot cup and wheel, and fix the printer.

If they are installed, ignore this step and go to next.

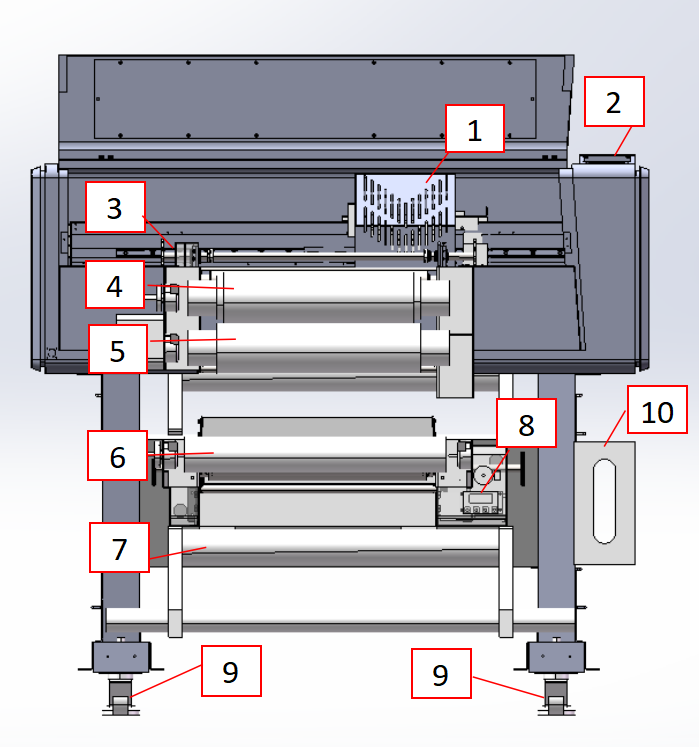

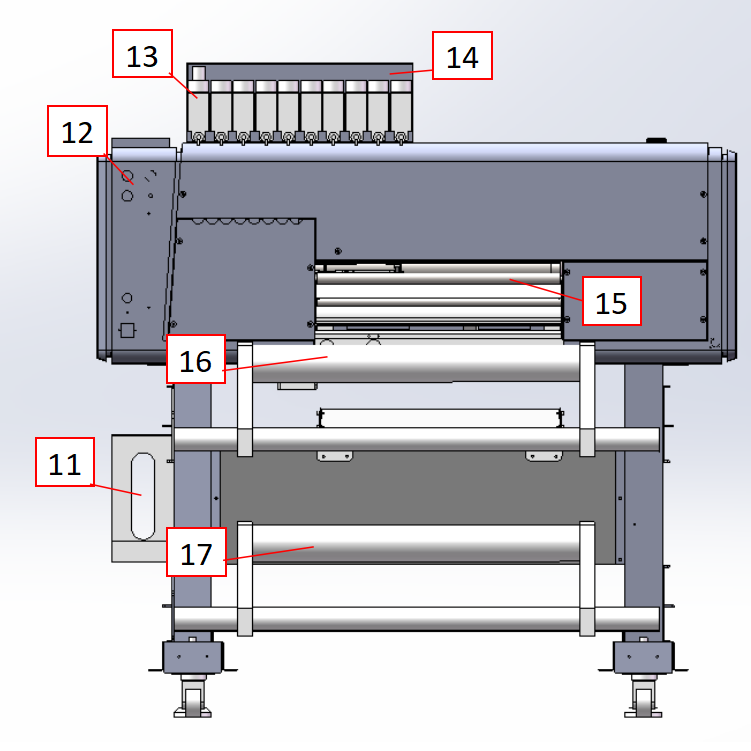

As shown:




01 Carriage ink stack assembly

02 Control panel

03 Rubber Roller Lifting Handle

04 Foil or B film feeding roller

05 Foil film waste rewinding tray

06 Laminated film feeding roller

07 Finished material take-up roller

08 Laminated part controller

09 Casters and foot cups

10 Waste ink tank holder

11 Waste ink tan

12 Switch panel

13 Ink tank

14 Ink tank holder

15 A film protective film stripping rod

16 A film waste rewinding tray

17 A film and Release film feeding roller






Rack installation

-----------------

Type 1: No stander

As shown:



 Refer to the following video 1 ：（Front and rear rack mounting）


 Refer to the following video 2 ：（AB film material installation）



Type 2: Simple stander

As shown:


 Refer to the following video 1 ：（Stander mounting）


 Refer to the following video 2 ：(Fixing machine)


 Refer to the following video 3 ：（AB film material installation）



Type 3: Upgrade stander

As shown:



 Refer to the following video 1 ：（Stander mounting）


 Refer to the following video 2 ：（Stander mounting）


 Refer to the following video 3 ：（Stander mounting）


 Refer to the following video 4 ：（AB film material installation）
